Outdoor Fiber Optic Cables
Our outdoor fiber optic cable series is engineered to deliver reliable, high-speed data transmission across long distances. These cables are built to withstand harsh environmental conditions while providing superior mechanical strength, UV resistance, water-blocking protection, and low-attenuation optical performance.
Key Features

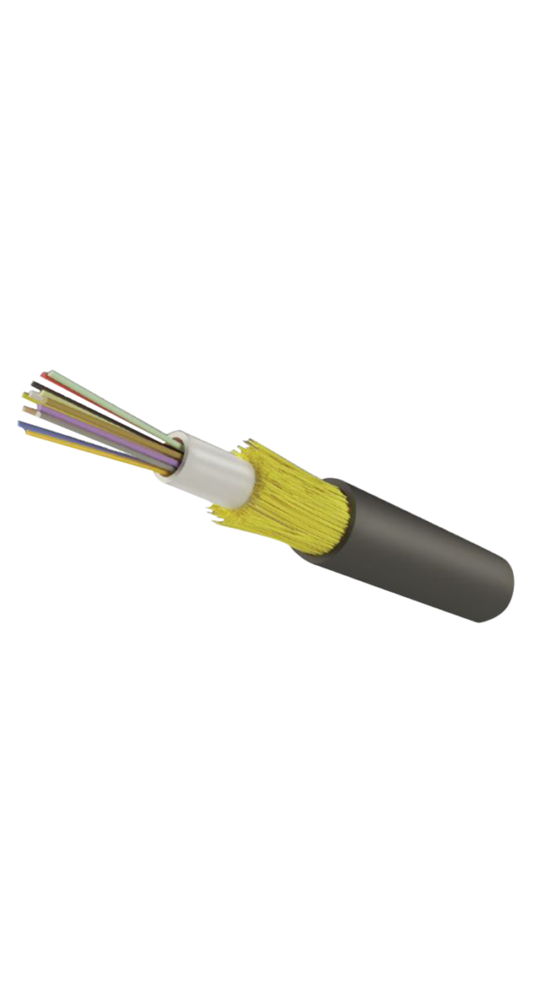

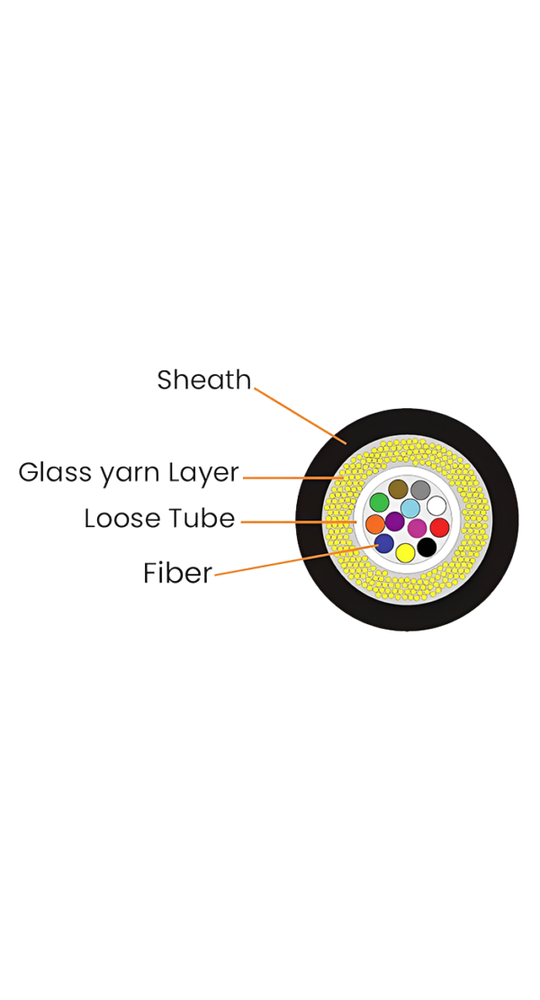

Uni-Tube Duct Cables
Designed for reliable fiber connectivity in duct installations and indoor/outdoor horizontal and vertical building cabling.
- Fiber Count: 2–12 cores (Single-mode or Multi-mode).
- Operating Temperature: -40°C to +60°C.
- Mechanical Strength: Long-term tensile strength of 300N and short-term of 600N

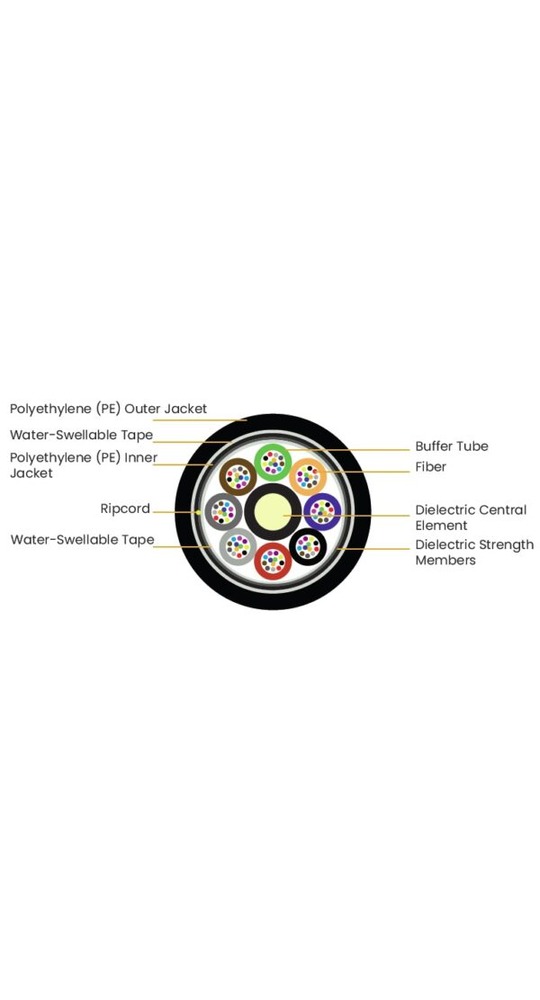

Multi-Tube Duct Cables
Optimized for long-distance communication in telecommunications, data centers, and campus networks.
- Fiber Count: 8–288 cores (typically Single-mode).
- Deployment: Ideally suited for blowing into pre-installed micro-ducts.
- Mechanical Strength: Long-term tensile strength of 700N and short-term of 1500N.
- Operating Temperature: -40°C to +

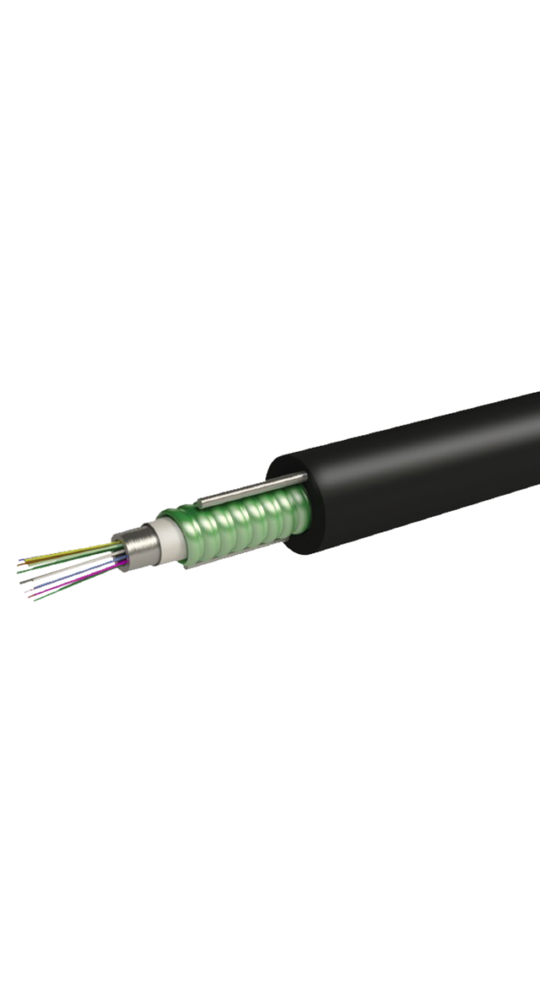

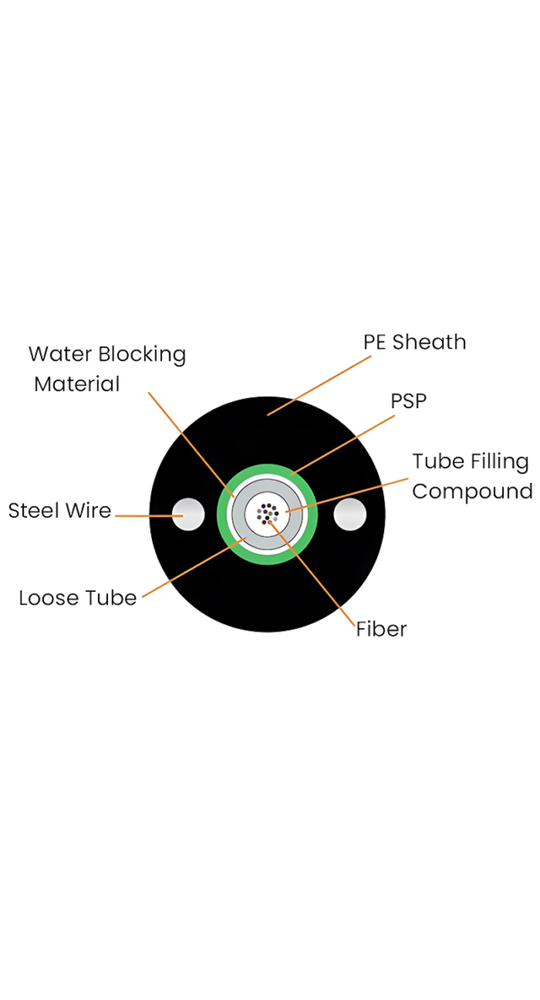

Uni-Tube Armored Cables
Ruggedized, single-tube cables designed for enhanced durability in outdoor environments.
- Fiber Count: 2–12 cores (Single-mode or Multi-mode).
- Applications: Ideal for outdoor distribution, aerial, pipeline laying, and LAN communication.
- Mechanical Strength: Long-term tensile strength of 600N and short-term of 1500N.
- Operating Temperature: -40°C to +60°C.

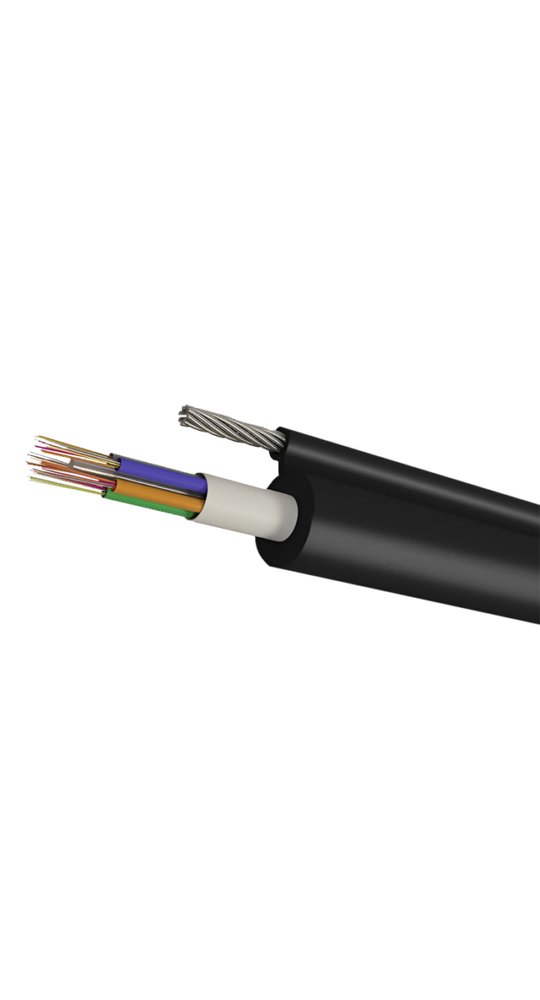

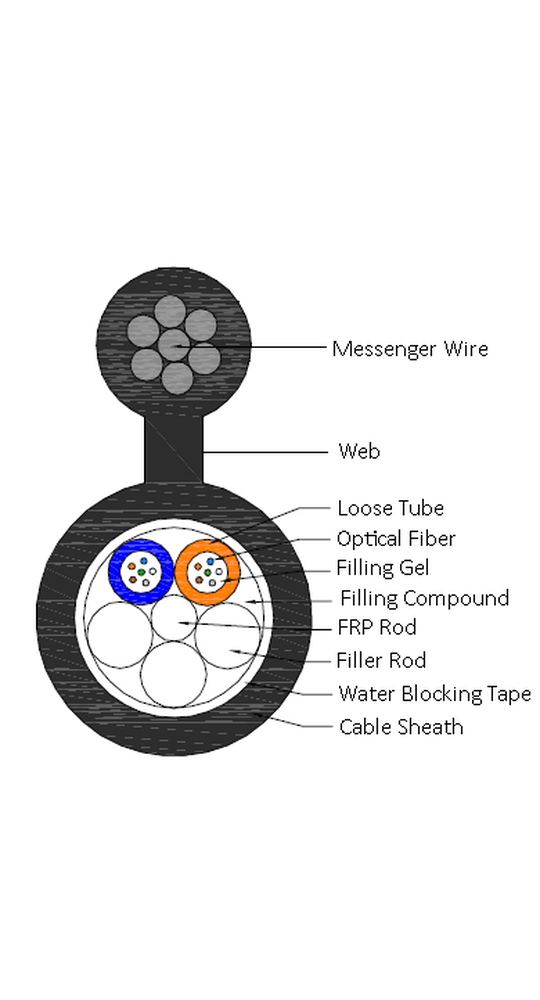

Aerial Outdoor Cables
Ruggedized cables for demanding environments requiring high mechanical and environmental resistance.
- Fiber Count: 6–144 cores.
- Applications: Suitable for direct burial, aerial installations, and areas prone to physical damage.
- Durability: High-impact protection with a short-term crush resistance of 3500N/100mm.
- Thermal Range: Extended operating temperature up to +75°C.

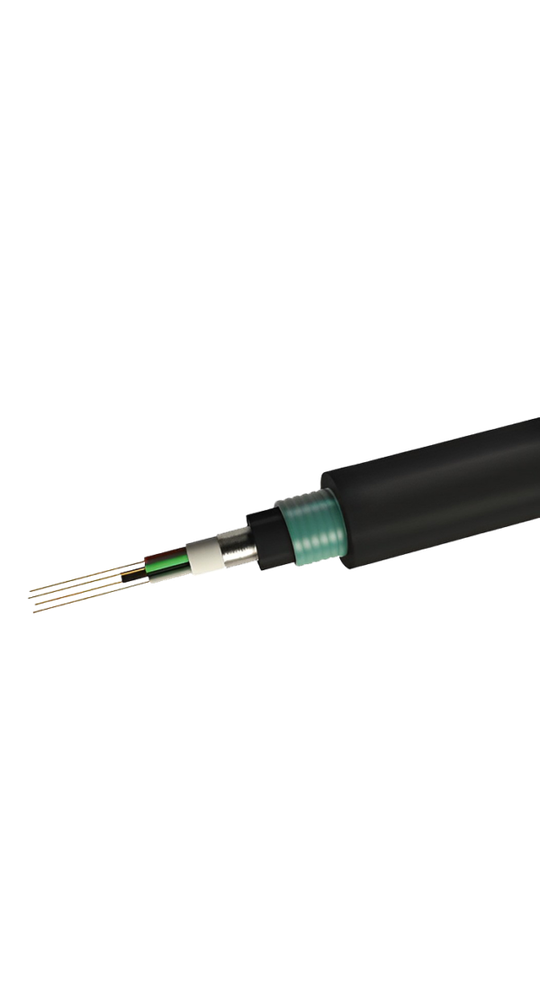

Multi-Tube Armored Cables
Specialized for overhead suspension on poles, towers, and aerial structures.
- Fiber Count: 1–12 cores (typically Single-mode).
- Tensile Capability: Engineered with a short-term tensile strength of 3000N for suspended durability.
- Operating Temperature: -40°C to +60°C.

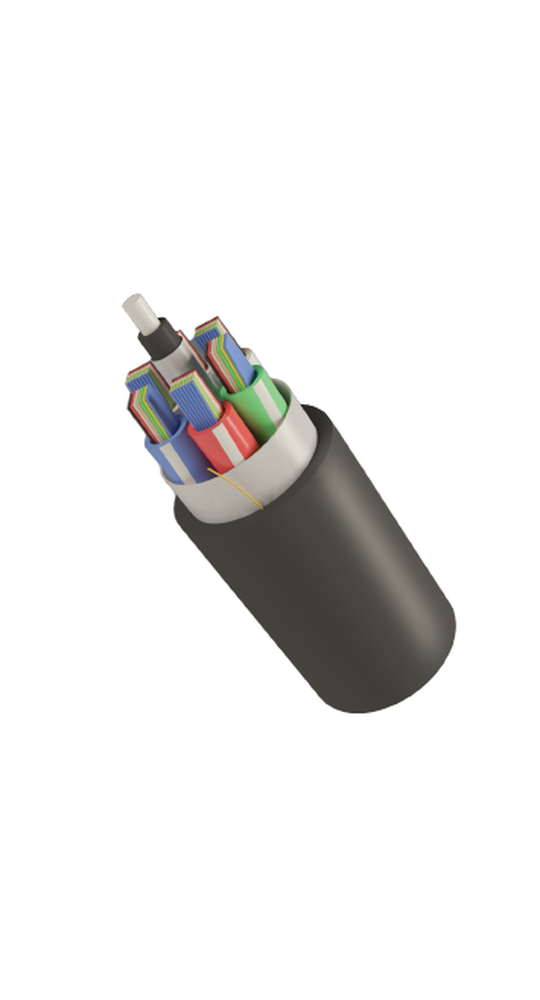

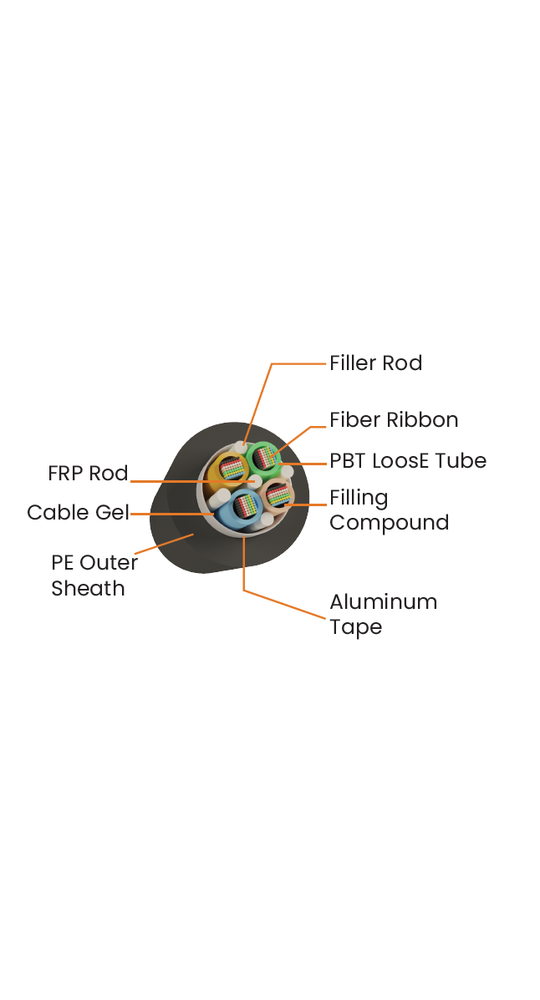

Ribbon Outdoor Cables
High-density solutions for large-scale networks and data centers.
- Fiber Count: 16–432 cores (Single-mode and Multi-mode).
- Design: Flat ribbon structure enables high fiber density within a small cable diameter.
- Applications: Metro networks, long-haul infrastructure, and high-count data center interconnections.
