Overview
Indoor-Outdoor Fiber Optic Cables
The Indoor-Outdoor FTT cable series provides a seamless transition from distribution networks to end-user premises. These cables are engineered to be versatile, combining the flexibility required for indoor routing with the UV-resistance and environmental protection necessary for outdoor deployments
Indoor-Outdoor Fiber Optic Cables
Optical Performance Summary
Fiber Type | Wavelength | Max Attenuation (db/km) |
|---|---|---|
50/125um | 850nm / 1300nm | ≤ 3.5 / 1.5 |
G652D | 1310nm | ≤ 0.35 |
G652D | 1550nm | ≤ 0.22 |

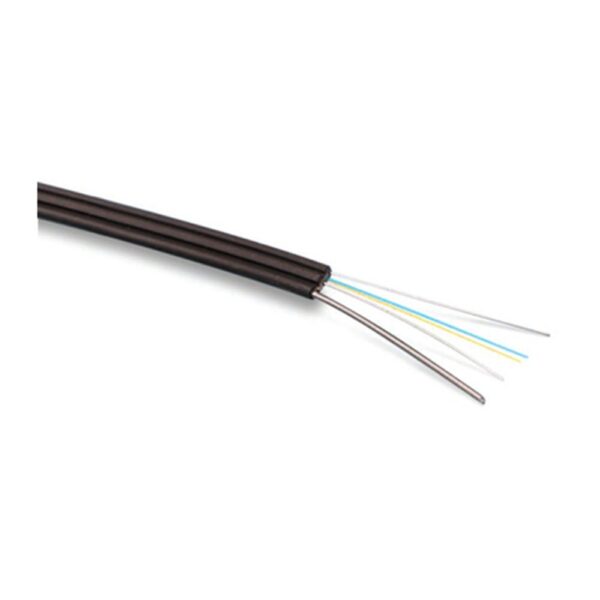

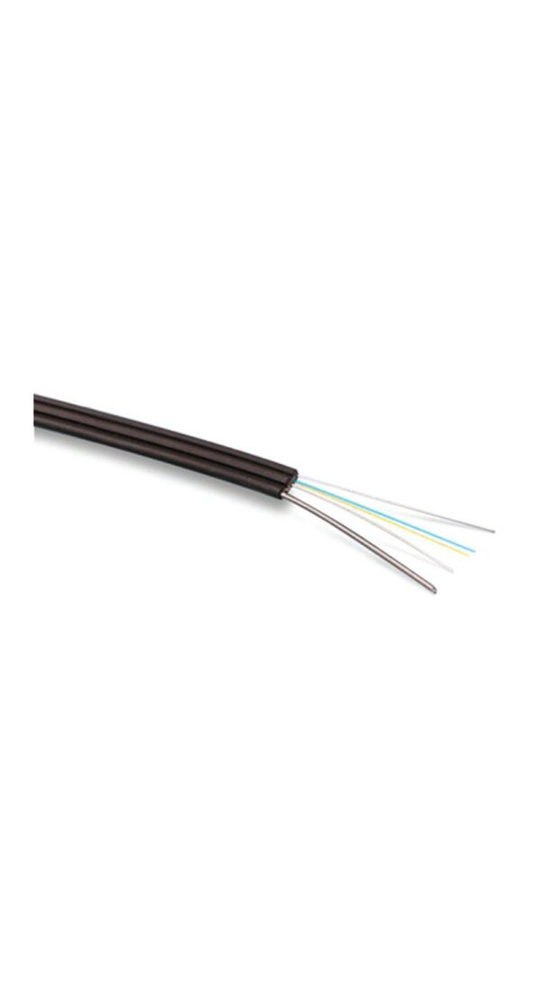

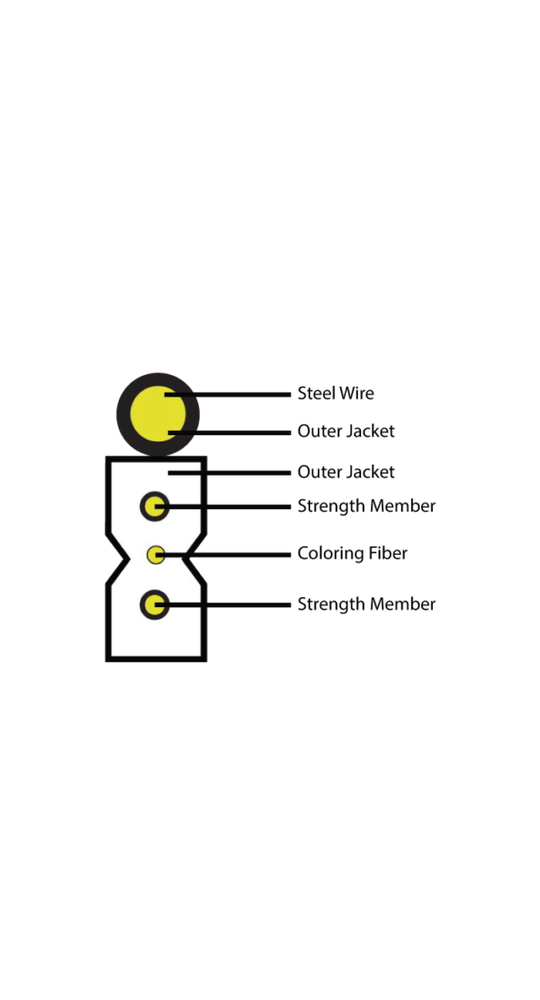

FTTH Indoor-Outdoor Cables
Optimized for Fiber-to-the-Home (FTTH) applications, these cables feature low-bend-sensitivity fibers for high bandwidth and stable transmission.
- Fiber Count: 1–4 cores (Single-mode or Multi-mode).
- Design: Lightweight with two parallel strength members for excellent crush resistance.
- Application: Ideal for last-mile connectivity and seamless indoor-outdoor building entry.
- Operating Temperature: -10°C to +60°C.

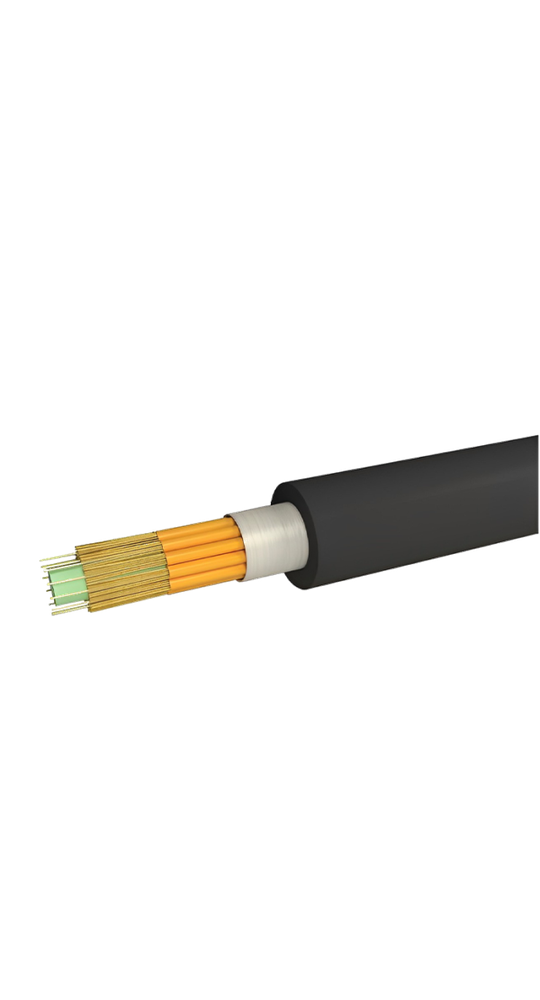

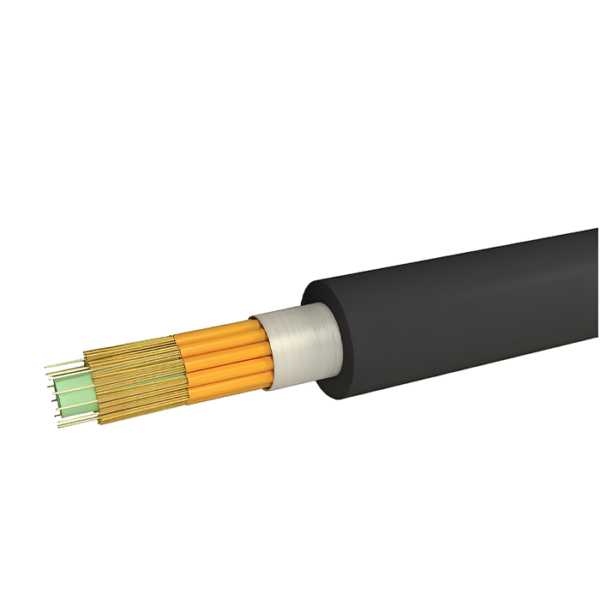

Round Indoor-Outdoor Cables
A versatile single-cable solution for high-speed connectivity in mixed environments.
- Fiber Count: 2–12 cores (Single-mode or Multi-mode).
- Application: Suitable for fiber distribution and interconnection between equipment in both indoor and outdoor settings.
- Mechanical Strength: 200N (long-term) and 660N (short-term) tensile strength.
- Operating Temperature: -20°C to +85°C.
Central Indoor-Outdoor Micro-Duct Shielded Cables
High-performance, ruggedized cables designed for demanding FTTX installations.
- Fiber Count: 4 cores (G.657A2 Single-mode fiber).
- Shielding: Reinforced with spiral steel wire armor and aramid yarn for superior protection.
- Fire Safety: LSZH (Low Smoke Zero Halogen) jacket with a 4.0 mm outer diameter.
- Mechanical Strength: Exceptional crush resistance, reaching 3000N/100mm (short-term).
- Thermal Range: Extreme reliability with an operating temperature range of -20°C to +85°C.
