CAT5E NETWORKING CABLE

A cost-effective copper cabling range for reliable Gigabit Ethernet, local area networks and small-to-medium business infrastructure.

NETWORK PERFORMANCE

FTT Cat5e cable is an enhanced version of Legacy Category 5 cabling. It supports data rates up to 1 Gbps and bandwidth up to 100 MHz while reducing near-end and far-end crosstalk. The range is compatible with RJ45 connectivity, supports Power over Ethernet and is designed for flexible installation

AVAILABLE CABLE CONSTRUCTIONS

The portfolio includes UTP for normal indoor installations and SSTP or SFTP for outdoor and high-interference locations. Each construction uses four twisted pairs, with shielding added where stronger noise protection is required

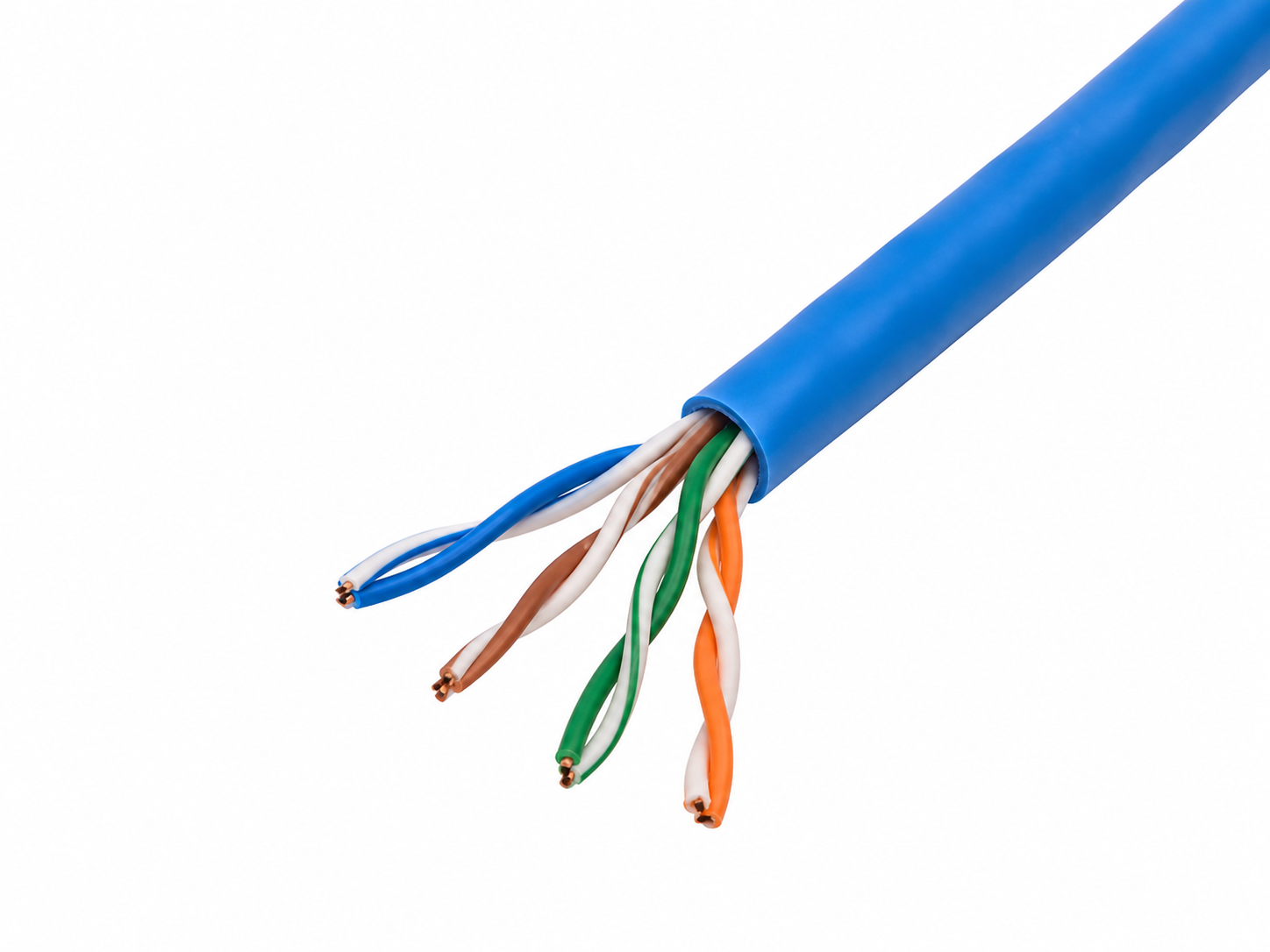

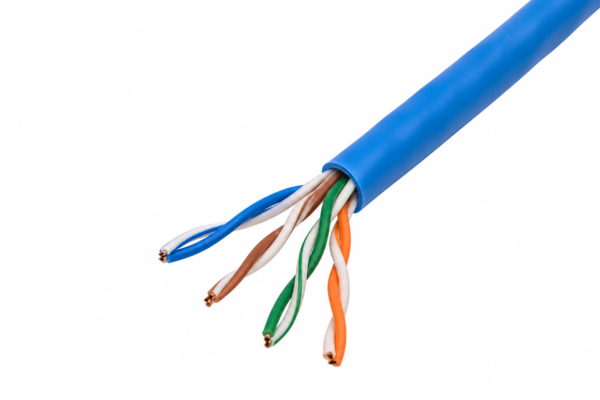

UTP CAT5E CABLE

The unshielded version provides stable and economical data transmission for residential, commercial and office networks. Its smooth jacket and flexible structure make it easier to pull through tight spaces.

Data rates up to 1 Gbps and bandwidth up to 100 MHz.
Reduced NEXT and FEXT with four unshielded twisted pairs.
Suitable for broadband videos, Fast Ethernet and Gigabit Ethernet.
RJ45 and Power over Ethernet compatibility.
Meets or exceeds TIA/EIA 568 B.2 and ISO/IEC requirements.

UTP PRODUCT DATA

Shielding	UTP indoor
Conductor	24 AWG solid copper
Insulation	Polyolefin
Impedance	100 ohms plus or minus 15 ohms
Operating Temperature	-20 degrees C to +60 degrees C
Outer Jacket	PVC or LSZH
Structure	4 pairs
Supply Length	100 meters
Jacket Color	Gray

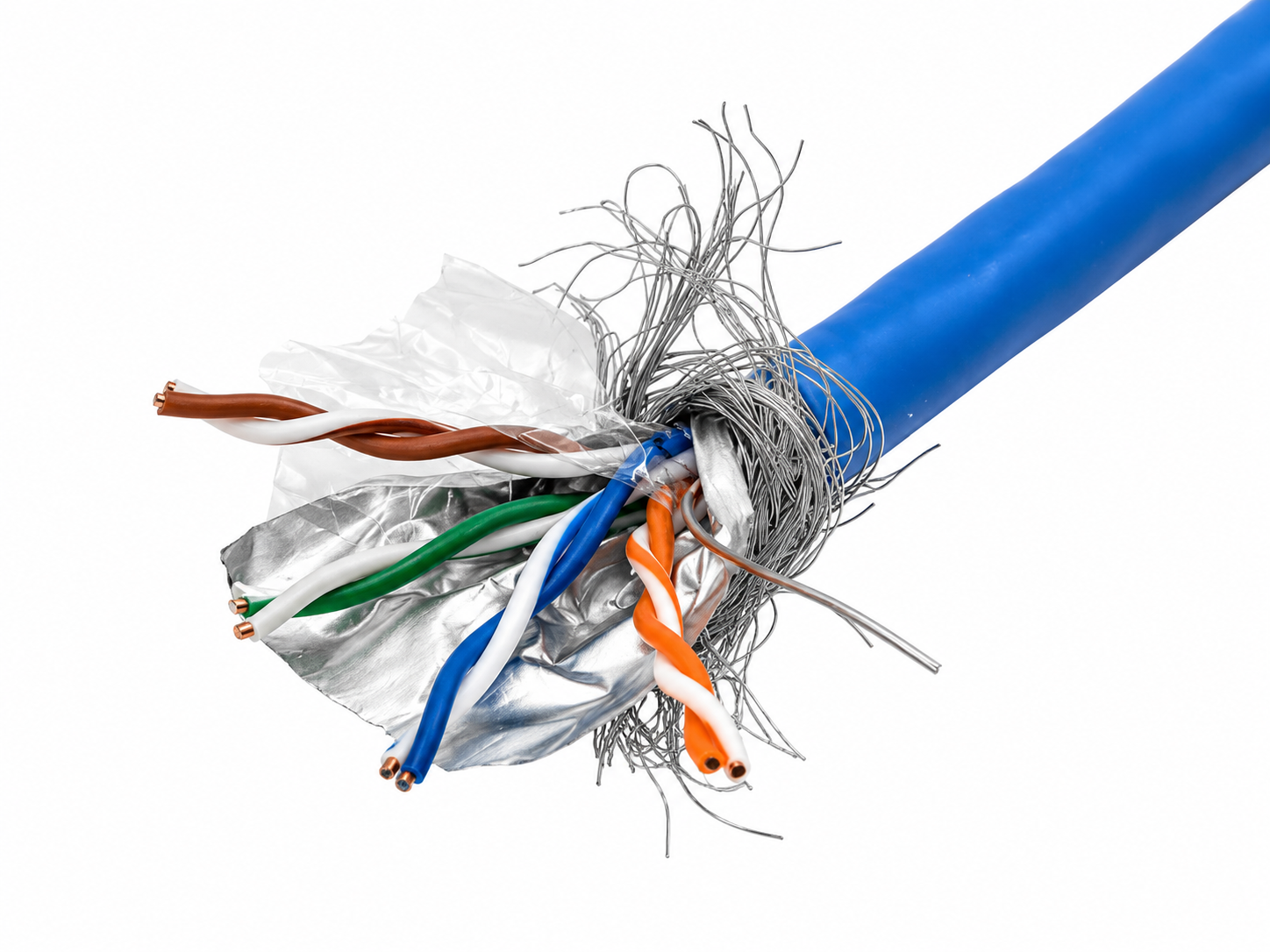

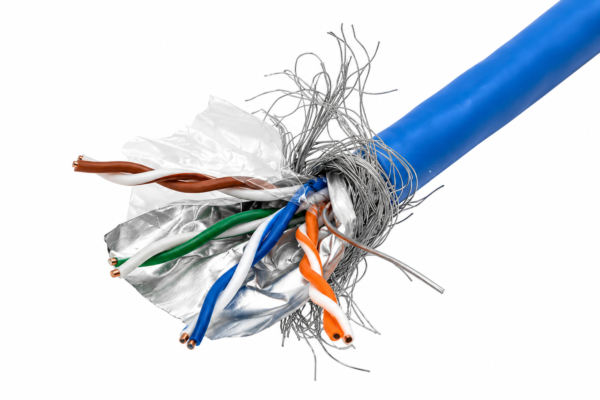

SSTP CAT5E CABLE

The SSTP version combines individually shielded pairs with an overall braided screen for strong noise immunity, grounding and signal stability. It is intended for industrial environments, data centres, factories, power rooms, telecom rooms and structured cabling systems.

Data rates up to 1 Gbps and bandwidth up to 100 MHz.
Dual shielding for protection against electromagnetic interference.
Compatible with RJ45 connectivity and Power over Ethernet.

SSTP PRODUCT DATA

Shielding	SSTP outdoor
Conductor	24 AWG solid copper
Insulation	Polyolefin
Impedance	100 ohms plus or minus 15 ohms
Operating Temperature	-10 degrees C to +75 degrees C
Outer Jacket	PVC or LSZH
Structure	4 pairs
Supply Length	300 meters
Jacket Color	Gray

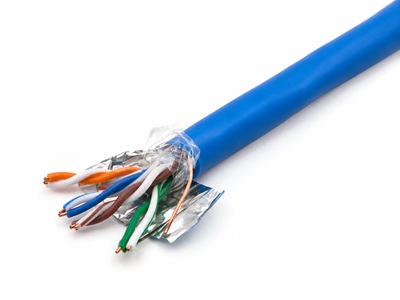

SFTP CAT5E CABLE

The SFTP version uses an overall foil shield together with an overall braided screen to reduce EMI, RFI, NEXT and FEXT. It is intended for applications where electrical noise is present and consistent data integrity is essential.

Data rates up to 1 Gbps and bandwidth up to 100 MHz.
Dual foil and braid shielding for high signal stability.
Compatible with shielded RJ45 connectors and Power over Ethernet.

SFTP PRODUCT DATA

Shielding	SFTP outdoor
Conductor	24 AWG solid copper
Insulation	Polyolefin
Impedance	100 ohms plus or minus 15 ohms
Operating Temperature	-10 degrees C to +75 degrees C
Outer Jacket	PVC or LSZH
Structure	4 pairs
Supply Length	300 meters
Jacket Color	Gray
